Harbour information
Location: Dalsfjord, Volda, Norway
Loading facility

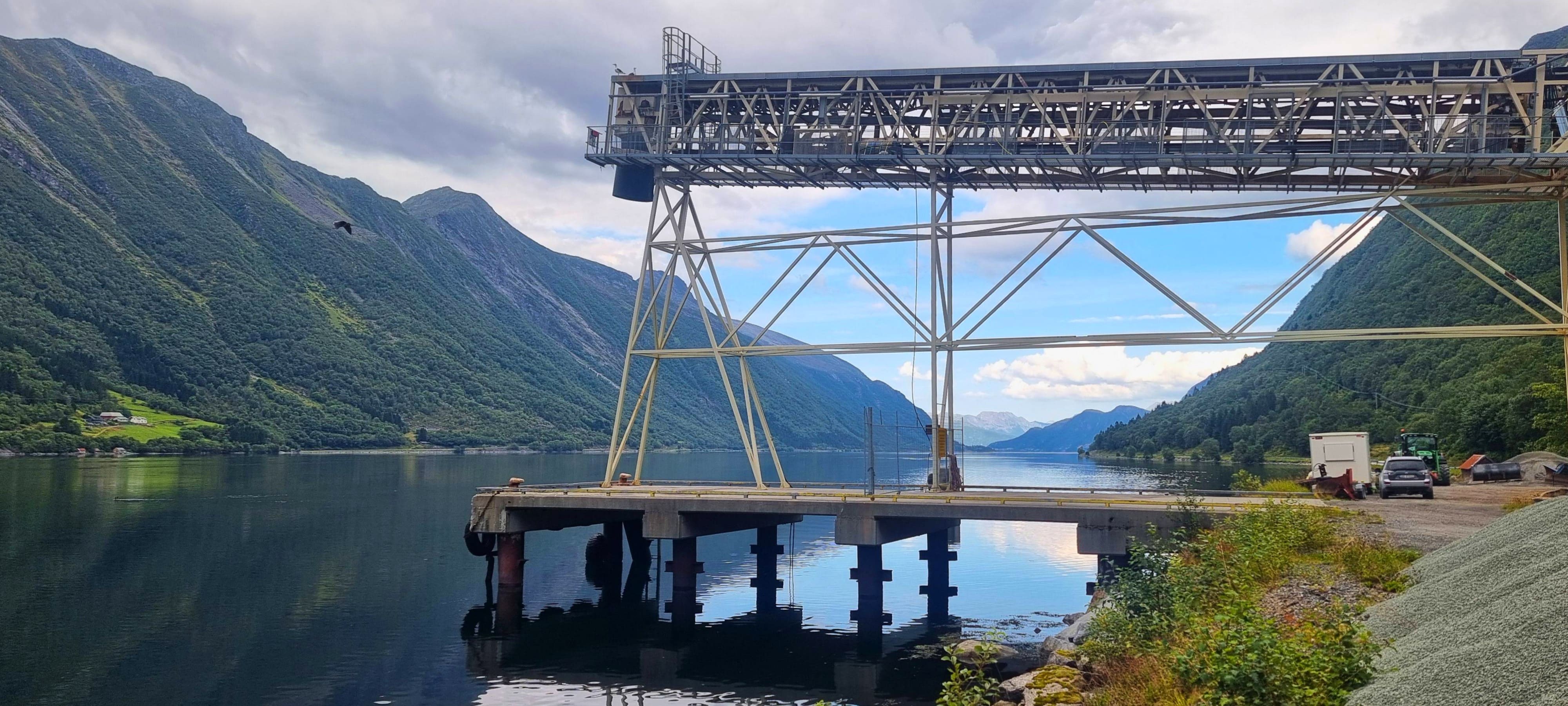

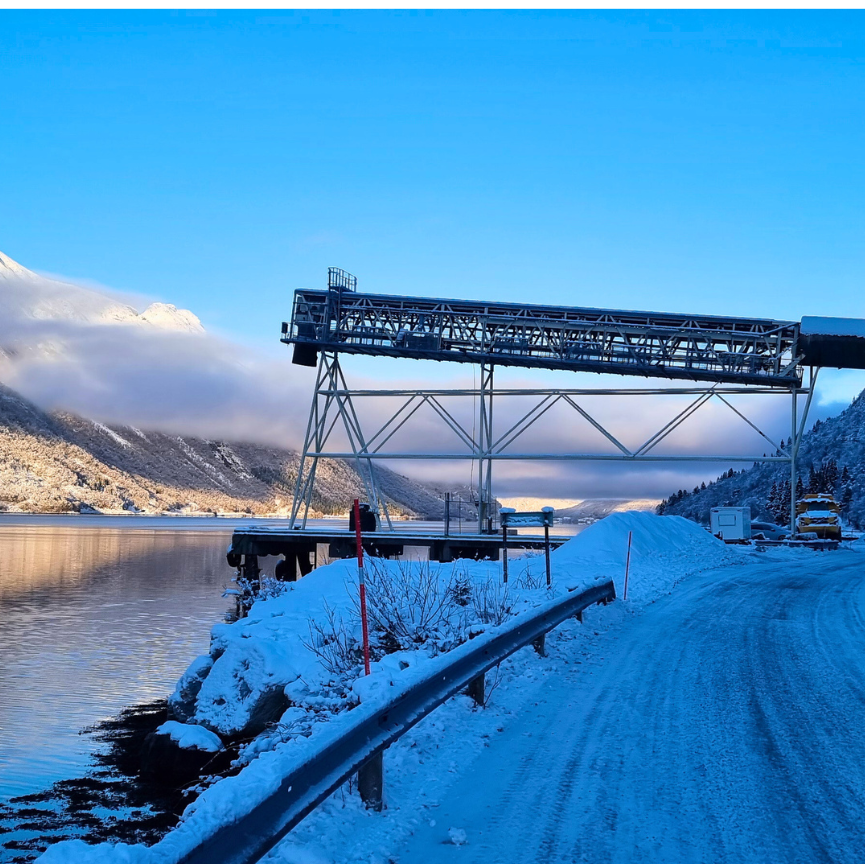

Loading spout
Loading is carried out via a conveyor belt with a movable horizontal extension and a vertically movable loading spout.
Capacity
The loading spout has a reach of 16 meters from the quay edge and a height of 17 meters above the quay at maximum outreach.
Conveyor belt
The capacity of the conveyor belt is 1,200–1,500 tonnes per hour.
Quay
Vessels can load with either the starboard or port side alongside the quay.
There are no obstacles limiting the length of the vessel.
Harbour information
Basic information regarding the port facility
- Port facility name: Steinsvik Olivine AS
- Port facility IMO number: NOVDA-0003
- Current security level: Maritime security level 1
Berth limitations
- Maximum vessel size:
– Maximum vessel displacement: 40 000 dwt - Maximum draft: 10.5 m
- Water depth at the quay front at lowest low water: 11 m
- Under-keel clearance: In accordance with the prevailing depth and tidal conditions
Berth data
- Length of berth front:
– 10 m berth

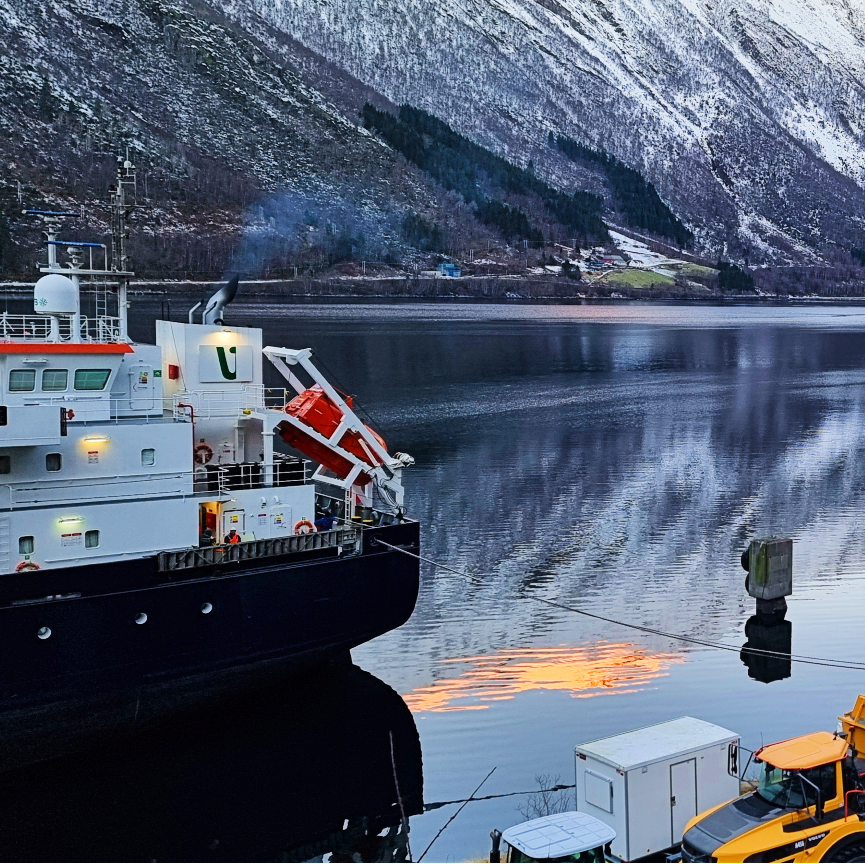

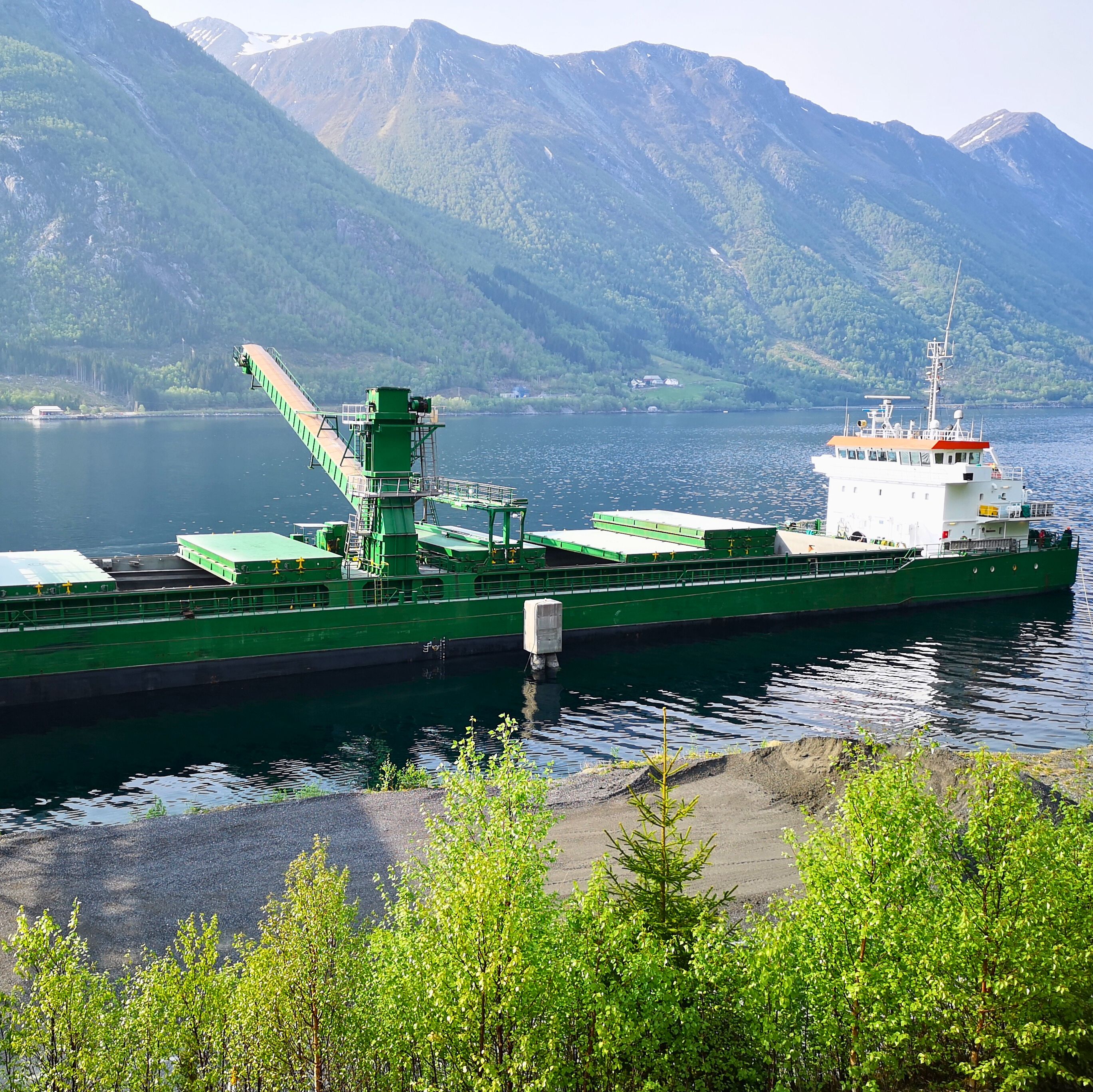

– 100 m between dolphins - Fender: Fenders at berth longside

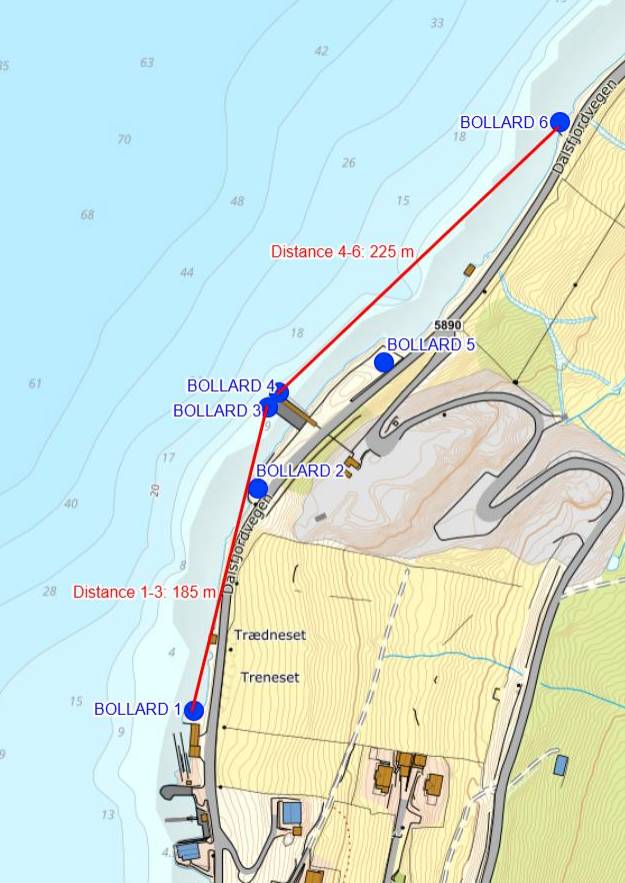

Mooring
There are six bollards available for mooring. Bollards 1 and 6 are intended for use by the largest vessels only.
